SNDT Automation Pvt. Ltd., is one of the leading manufacturers & suppliers of a wide range of optimum quality Automation Testing System. The product range offered by us consists of Automated Test Equipment, Data Loggers & Auto Parts Test Jigs. Our products are manufactured from high quality materials that are sourced from certified vendors of the industry. In addition to this, these products are manufactured by using advanced machinery and in compliance with the set industry standards. Available with us at industry leading prices, these products are known for their easy operation, high performance, low maintenance and longer operational life.
Our
Product Range includes:
CG Emotron VSS Single Phase VFD,
LV AC Drives till 3MW,
MV AC Drives till 8.8MW & 11kV,
Soft starters till 1.6MW,
Shaft Power Monitors,
Motor mounted Drives,
Heat exchanger Drives,
Sensorless Vector Control,
Direct torque control VFD Panels

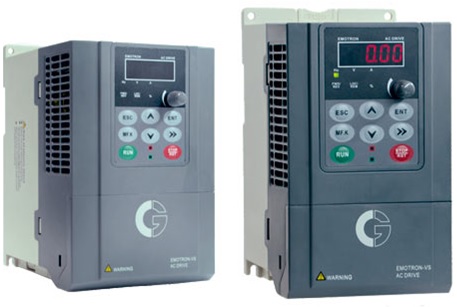

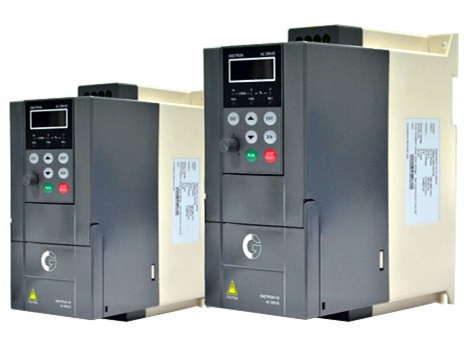

| CG Emotron VSS Single Phase VFD | ||
|
Specifications | Features |
| Range:- 0.4kW – 2.2kW | Parameter copy, Parameter backup | |
| Supply:- 220V Single Phase | Common DC bus, Reliable speed search | |
| Applications:- Like Packaging, Wood working, Pumps, | Various master & auxiliary command and switchover. | |
| Blowers, Mixers, and other machineries. | A variety of Accel / Decel programmable curves. | |
| Output Frequency:- 0-600HZ | Timing control , Fixed length control, Count function. | |
| IP20 Protection Class | Fault recording , Over excitation brake | |
| EMC Filter is built-in | Programmable overvoltage protection | |
| Brake Chopper is built-in. | Programmable under voltage protection | |
| Modbus Communication is built-in. | Restart upon power loss. | |
| Available I/O:- | Four kinds of Accel/Decel time. | |
| - 5 Digital Inputs | Motor thermal protection. | |
| - 1 Relay Output | Flexible fan control. , Process PID control | |
| - 1 Open collector output | Programmable 16-step speed control | |
| - 2 Analog Inputs | Wobble frequency control. | |
| - 1 Analog Output | Multi-functional key programmable , Field-weakening control. | |
| High-precision torque control , | ||
| V/f separated control , Torque control via sensor-less vector control. | ||
| CG Emotron VSSA Single Phase VFD | ||
 |
Specifications | Features |
| Dedicated CG Application Drive | Parameter copy, Parameter backup | |
| Applications:- Cheese Winder, Incense stick | Common DC bus, Reliable speed search | |
| machine application etc. | Various master & auxiliary command and switchover. | |
| Range:- 0.4kW – 2.2kW | A variety of Accel / Decel programmable curves. | |
| Supply:- 220V Single Phase | Timing control , Fixed length control, Count function. | |
| Output Frequency:- 0-600HZ | Fault recording , Over excitation brake | |
| IP20 Protection Class | Programmable overvoltage protection | |
| EMC Filter is built-in | Programmable under voltage protection | |
| Brake Chopper is built-in. | Restart upon power loss. | |
| Modbus Communication is built-in. | Four kinds of Accel/Decel time. | |
| Available I/O:- | Motor thermal protection. | |
| 5 Digital Inputs | Flexible fan control. , Process PID control | |
| 1 Relay Output | Programmable 16-step speed control | |
| 1 Open collector output | Wobble frequency control. | |
| 2 Analog Inputs | Multi-functional key programmable , Field-weakening control. | |
| 1 Analog Output | High-precision torque control , | |
| V/f separated control , Torque control via sensor-less vector control. | ||
| CG Emotron VSU VFD | ||
|
Specifications | Features |
| Dynamic AC Drives for Small AC Motors | Parameter copy, Parameter backup, Common DC bus, | |
| Small Drive Big Functionality | Free switchover between two motors’ parameters, | |
| Range:- 0.75kW – 18.5KW / 1HP – 25HP | Flexible parameter displayed & hidden, | |
| Supply:- 400V Three Phase | Various master & auxiliary command and switchover, | |
| IP20 Protection Class | Speed search started, | |
| Output Frequency:- 0-600HZ | A variety of Accel/Decel optional curves, | |
| Brake Chopper is built-in. | Contracting brake control, | |
| Modbus Communication is built-in. | 16-step speed control programmable | |
| Available I/O:- | Wobble frequency control, | |
| 6 Digital Inputs | Fixed length control, | |
| 1 Relay Output | Count function, Fault recording, | |
| 2 Open collector output | Over excitation brake, Overvoltage protection, | |
| 2 Analog Inputs | Undervoltage protection, Restart upon power loss, | |
| 1 Analog Output | Skip frequency, Frequency binding, | |
| Four kinds of Accel/Decel time, | ||
| Motor thermal protection, | ||
| Flexible fan control, Process PID control, | ||
| Simple PLC, Multi-functional programmable key, | ||
| Droop control, Parameter identification, | ||
| Field-weakening control, | ||
| High-precision torque restraint, | ||
| V/f separated control, | ||
| CG Emotron VSB VFD | ||
|
Specifications | Features |
| Vibrant, Compact & Dynamic AC Drives | Standard rated for 50'C @ 8kHz switching frequency and | |
| Simple to use & suitable for standard application | coated boards enable application in hot and humid climate | |
| Range:- 0.75kW – 3.7kW / 1HP – 5HP | Detachable keypad | |
| Supply:- 400V Three Phase | Built-in brake chopper | |
| IP20 Protection Class | Integrated PID controller for process control | |
| Output Frequency:- 0-600HZ | Modbus RS485 as default | |
| Brake Chopper is built-in. | DC braking | |
| Modbus Communication is built-in. | Jog Mode | |
| Available I/O:- | Skip Frequency | |
| 4 Digital Inputs | Overvoltage protection | |
| 1 Relay Output | Undervoltage protection | |
| 1 Open collector output | Flying start function | |
| 1 Analog Inputs | Broken line acceleration | |
| 1 Analog Output | ||
| CG Emotron VSE Series | ||
|
Specifications | Features |
| Dedicated CG Elevator drive | Standard rated for 50'C @ 8kHz switching frequency and | |
| Smoothness, Quietness, Flexibility, Safety. | coated boards enable application in hot and humid climate | |
| Range:- 3.7kW, 5.5kW, 7.5KW | Detachable keypad with parameter copy function | |
| Supply:- 400V Three Phase | Built-in brake chopper | |
| IP20 Protection Class | Integrated PID controller for process control | |
| Output Frequency:- 0-600HZ | Modbus RS485 as default | |
| Brake Chopper is built-in. | Skip Frequency | |
| Modbus Communication is built-in. | Woble Freqency control | |
| Emergency input: UPS, 220VAC, Single Phase | Overvoltage protection | |
| Available I/O:- | Undervoltage protection | |
| 6 Digital Inputs | V/f Seperated control | |
| 1 Relay Output | Vector control | |
| 2 Open collector output | 16 preset speeds | |
| 2 Analog Inputs | ||
| 1 Analog Output | ||

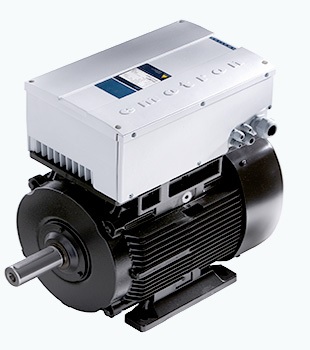

| CG Emotron CDU/CDX - Motor-mounted AC drives | ||
|
Specifications | Features |
| Saving space and installation costs. | No external motor cables | |
| Ready-to-run, tailored to your requirements, | Easy to install and commission | |
| Made for the toughest conditions | Screw terminals for easy connection | |
| Range:- 3kW – 22KW | Robust and compact IP55 | |
| Supply:- 400V Three Phase | Shock and vibration proof | |
| IP55 Protection Class | Own cooling system independent of motor cooling | |
| Built-in PTC thermistor | ||
| Suitable for all standard motor constructions | ||
| Mains supply from below or side | ||
| Logo and company colours | ||
| EMC Protection category upto C1 | ||
| PTC/PT100 options for motor protection and temperature feedback without transmitter | ||
| StandbStandby power supply option | ||

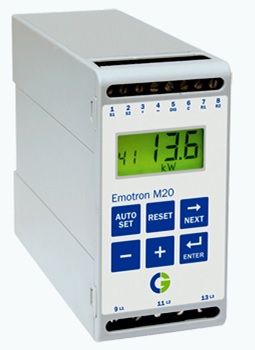

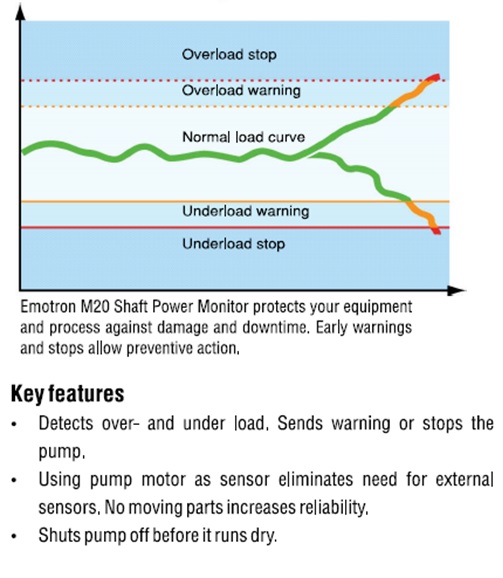

| CG Emotron M20 Shaft power monitor | ||
|
Specifications | Features |
| Protects Pumps, Mixers, Scrapers, Conveyors, |
|
|
| Crushers against damage & downtime. | ||
| Range:- 0.4A – 999A | ||
| Supply:- 220V/400V/525V/690V | ||
| (Single/Three Phase) | ||
| IP20 Protection Class | ||
| Application Fixed Speed Loads | ||

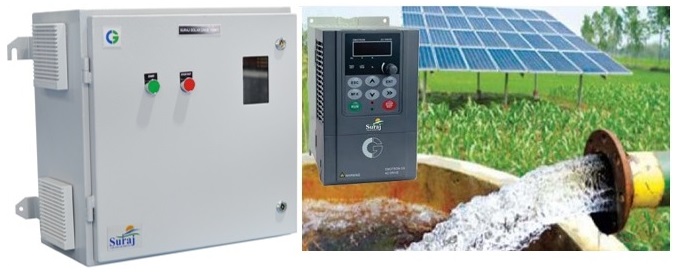

| CG Emotron VSR Series - Dedicated CG Solar drive | ||
|
||
|
Specifications |
Efficient and reliable control for solar pumps | |
| Range:- 0.75kW (Supply 1Ph 110VAC) | ||
| 0.75kW – 2.2KW (Supply 1Ph 220VAC) | ||
| 2.2kW – 7.5KW (Supply 3Ph 380VAC) | ||
| IP20 Protection Class | ||
| Efficient and user-friendly operation for solar pumping | ||
|
Emotron VSR series drives offer reliable, cost-efficient and
user-friendly operation. Soft start of pumps can avoid water hammer and
improve lifetime of the system. The Emotron VSR series has been
specially developed for solar water pumping. Built-in self-adaptive high
accuracy maximum power point tracking (MPPT) algorithm of VSR ensures
maximum water flow output. The compatibility of VSR with ac as well as
dc input gives user the flexibility to optimize the operation and
improve reliability of operation. |
||

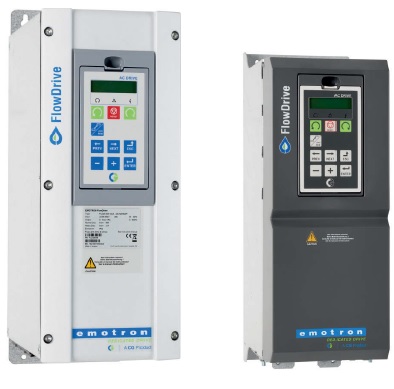

| CG Emotron FLOWDRIVE | ||
|
Specifications | Features |
| Dedicated Waste Water Drive | Energy savings, thanks to automatic optimal pump speed control | |
| The Heart of Flow Drive is Automatic reservoir level control which optimises energy use & real time process monitoring. | Compatibility with all kinds of pumps typically used in this application | |
| Range:- 0.75kW – 160KW | Built-in functions that minimise maintenance needs | |
| Supply:- 400V/525V/690V Three Phase | Absence of a PLC/pump controller reduces cost and effort involved in programming | |
| Protection Class:- IP20, IP21, IP54 | Having one less component reduces complexity and increases reliability | |
| Output Frequency:- 0-400HZ | Less starts and stops of the pumps thanks to longer run times caused by lower average frequency | |
| EMC Filter is built-in | Full connectivity to suit different user scenarios (remote telemetry/local control panel) | |
| Available I/O:- | Complete solution packaged that is simple to install and use | |
| 8 Digital Inputs | Access to system data/parameters for continuous performance monitoring | |
| 3 Relay Output | ||
| 2 Open collector output | ||
| 4 Analog Inputs | ||
| 2 Analog Output | ||

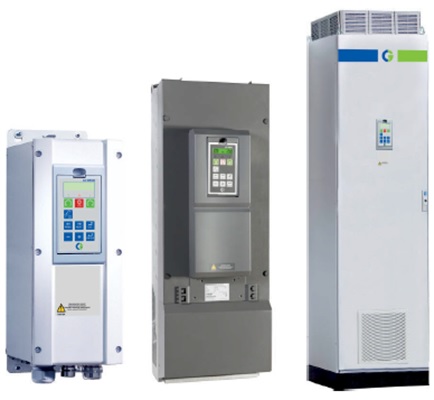

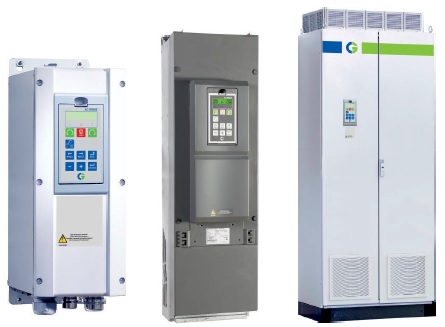

| CG Emotron VFX VFD | ||
|
Specifications | Features |
| Full Control with Precision | Modular design | |
| Unique Feature PEB Base System available from 300A to 3600A VFD. | More I/Os available - 4AI, 2AO, 8DI,2DO,3RO | |
| Range:- 0.75kW – 3000KW | Direct torque control reacts extremely quickly and | |
| Supply:- 400V/525V/690V Three Phase | eliminates disturbances due to abrupt load changes | |
| Application:- Variable/Constant Torque | Operation parameters cab be set in your process | |
| Protection Class:- IP20, IP21, IP54 | units, for exmpale m/s, tons/h or cycles/min. | |
| Output Frequency:- 0-400HZ | Integrated vector braking ensures quick and | |
| EMC Filter is built-in (Class 3) | controlled stops, increasing productivity and safety | |
| Applications:- Cranes, Crushers, Mills, Mixers, | Removable control panel with own memory means it | |
| Centrifuges etc. | is easy to transfer or copy settings | |
| Available I/O:- | Module fuses included as standard for sizes | |
| 8 Digital Inputs | 300 - 3750A (480V) and 210-3000 A (690 V) | |
| 3 Relay Output | Robust and certified IP54 metal construction as | |
| 2 Open collector output | option (up to 132kW) offers cost-efficient | |
| 4 Analog Inputs | installation close to the application | |
| 2 Analog Output | ||
| CG Emotron FDU VFD | ||
|
Specifications | Features |
| Full Control and Optimised Operation | Modular design | |
| Unique Feature PEB Base System available from 300A to 3600A VFD. | More I/Os available - 4AI, 2AO, 8DI,2DO,3RO | |
| Range:- 0.75kW – 3000KW | Operation parameters cab be set in your process | |
| Supply:- 400V/525V/690V Three Phase | units, for exmpale m/s, tons/h or cycles/min. | |
| Application:- Variable/Constant Torque | Removable control panel with own memory means it | |
| Protection Class:- IP20, IP21, IP54 | is easy to transfer or copy settings | |
| Output Frequency:- 0-400HZ | Module fuses included as standard for sizes | |
| EMC Filter is built-in (Class 3) | 300 - 3750A (480V) and 210-3000 A (690 V) | |
| Applications:- Fans, Pumps, Blowers, HVAC etc. | Robust and certified IP54 metal construction as | |
| Available I/O:- | option (up to 132kW) offers cost-efficient | |
| 8 Digital Inputs | installation close to the application | |
| 3 Relay Output | One Emotron FDU can control upto seven units without external control systems | |
| 2 Open collector output | Speed controlled fans assures less noise, a more even drive temperature and higher efficiency | |
| 4 Analog Inputs | ||
| 2 Analog Output | ||

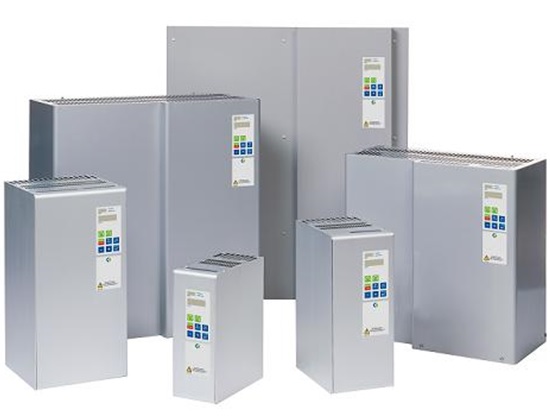

| CG Emotron MSF 2.0 SOFTSTARTER | ||
|
Specifications | Features |
| Range:- 7.5kW – 1600KW | Torque control provides linear acceleration and deceleration | |
| Supply:- 400V/525V/690V Three Phase | Minimizes impact on equipment and eliminates need for motor controlled valves | |
| Application:- Variable/Constant Torque | Built-in vector brake offers quick and safe braking of screens | |
| Protection Class:- IP20 (Up To 960A) | No need for mechanical brakes | |
| IP00 (Up To 1650A) | Build-in shaft power monitor sends warning or stops the pump when load is outiside your chosen limits. Actual load can be displayed via e.g. Profibus | |
| Analog sensor can be connected directly to MSF to control start and stop levels | ||
| MSF torque control minimizes start currents | ||

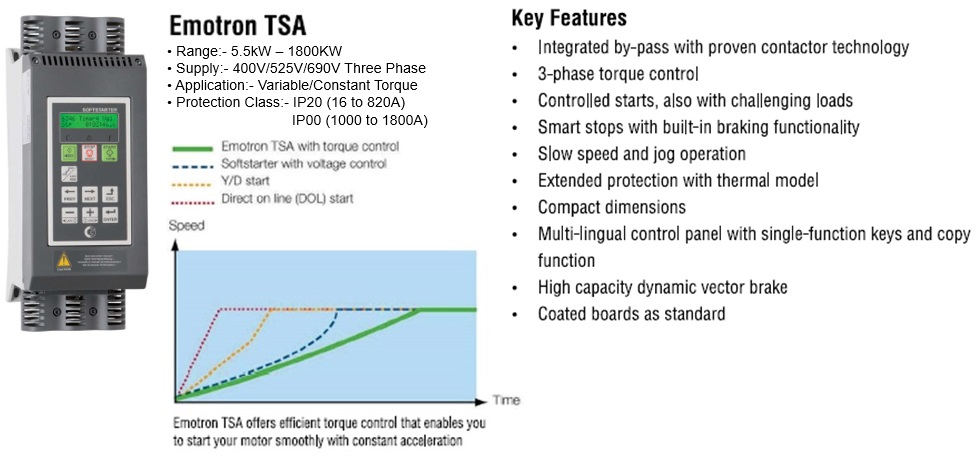

| CG EMOTRON TSA with built in bypass | ||
|

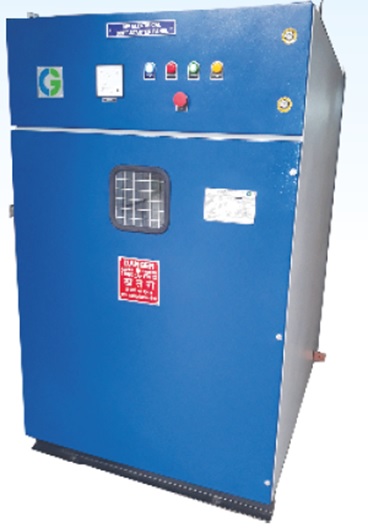

| CG FCMA SOFTSTARTER [REACTOR BASED MV MOTOR SOFT STARTER] | |
|
Specifications |
| Range:- 100kW – 20MW ; Supply:- 3.6 to 12kV | |
| Application:- Sugar, Refineries, Cement, Textile, Steel, Drinking Water and Irrigation, Chemicals, Mining etc. | |
| Advantages | |
| Economical Motor starting solution for fixes speed applications. | |
| Starting of motor with minimum limited current (3 - 4.5)FLC and Power | |
| Additional Capacitive dynamic compensation gives further starting current reduction up to 1.5 times FLC. | |
| Energy and cost saving against Maximum demand penalty | |
| Undistributed Power quality with special Air core reactors (No Harmonics generation) | |
| Smooth starting and contineous acceleration | |
| Higher motor / equipment life due to lesser stress | |
| Rugged magnetic Air core design. No maintenance | |
| Built in by-pass for full votage run | |
| Operating at normal ambient temperature up to 50'C | |
| Designed for no need of forced air or water cooling system | |
| Neutral side Soft Starter connection facilitates easy retrofitting on existing installation & can be placed near motor bay | |
| CG FCMA SOFTSTARTER [REACTOR BASED MV MOTOR SOFT STARTER] | |
|

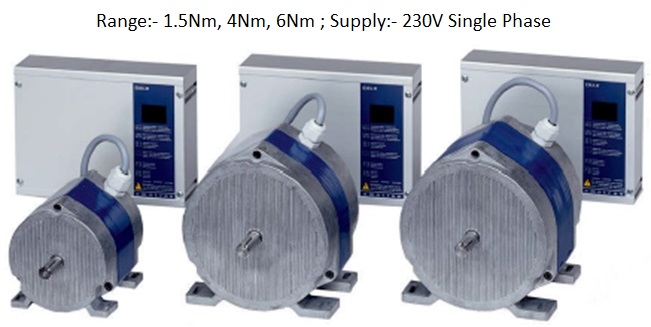

Features |
| Purging operation | |
| Motor protection | |
| Active holding torque | |
| Soft starting/stopping | |
| Rotation sensor, integrated electronic | |
| Short circuit protection | |
| Selectable maximum speed | |
| Robust motor wuthout gear or fan | |
| High efficiency - No gearbox losses | |
| Integrated motor cable | |
| Holding Torque - prevents involuntary heat transference | |

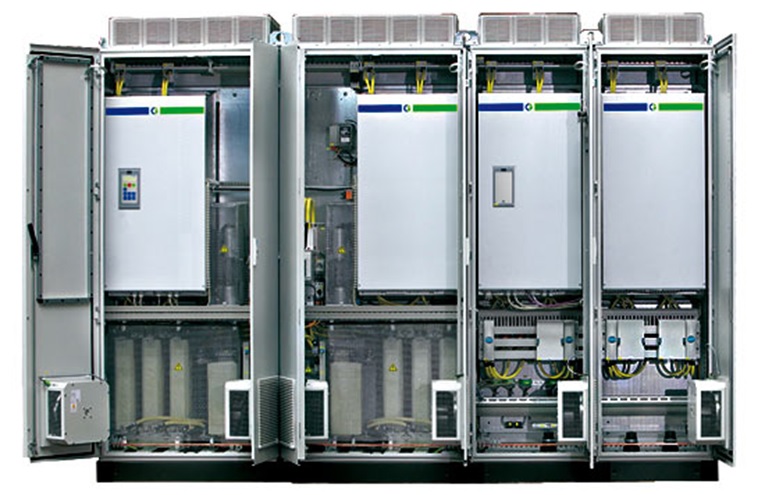

| CG Emotron AFE - Active Front End drives | ||
|
||
|
Low harmonic drives and Regenerative drives. Emotron Low harmonic drives
produce typically less than THDI 5% compared to 30-50% in conventional
drives. Offer considerable energy savings by feeding the braking energy
back to the mains in applications such as cranes and centrifuges Range:- 0.37kW – 3000KW (230V – 690V) IP20, IP54 Protection Class |
